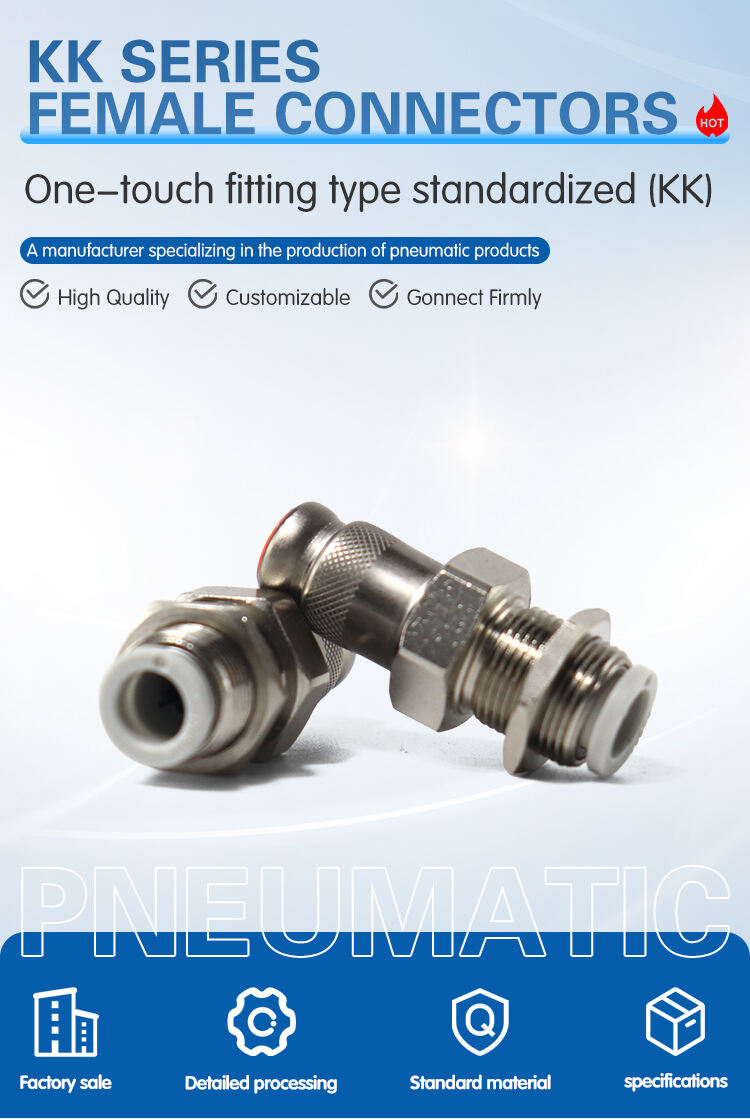

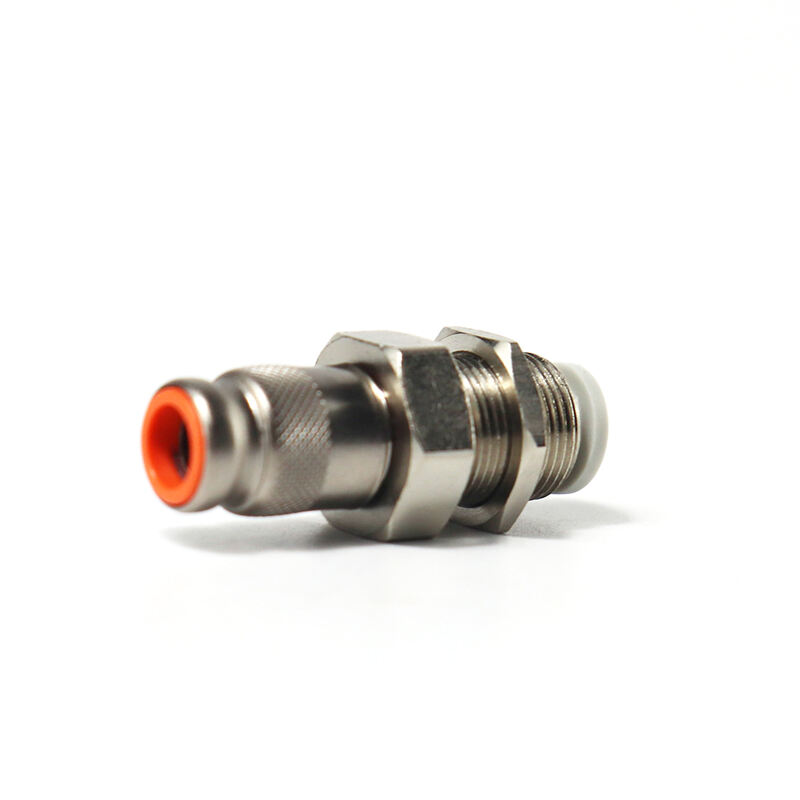

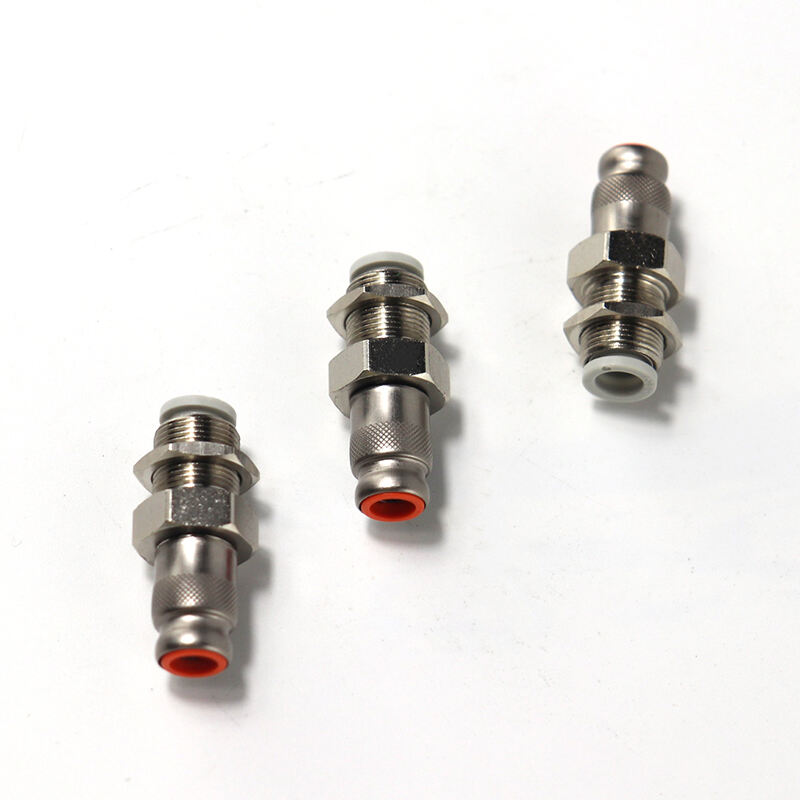

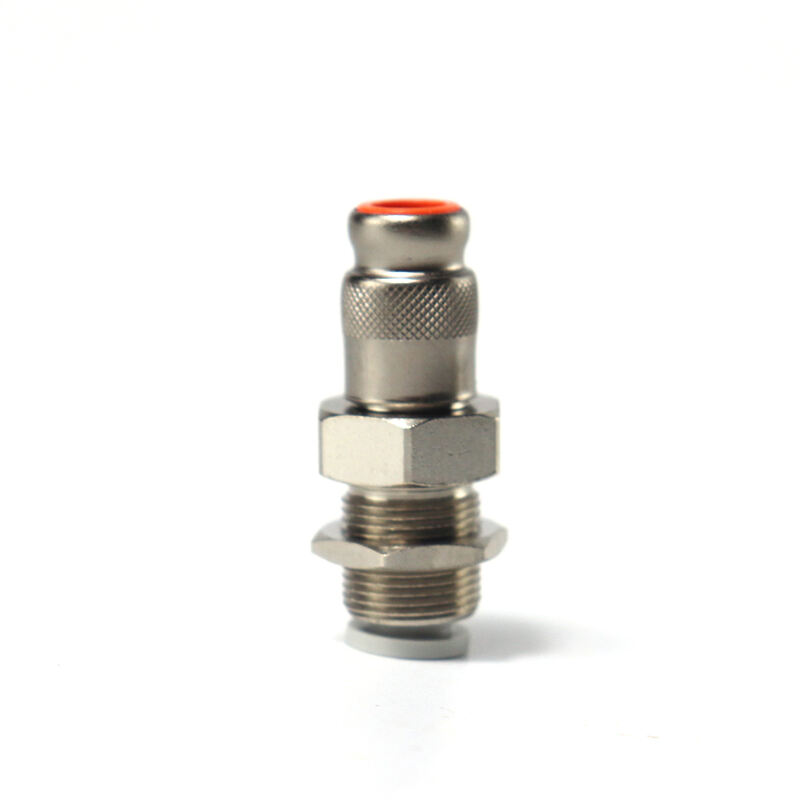

KK Series Female Connectors

Easy to use: Adopting a quick connector design, it can quickly connect and disconnect air pipes without tedious disassembly and assembly processes, which can effectively improve work efficiency. Excellent material quality: Some models are made of high-impact-resistant PBT resin (KKH), and there are also types made of stainless steel, which have good wear resistance and impact resistance, ensuring the service life and stability of the connector. Wide application range: It can connect various air pipes such as nylon pipes and polyurethane pipes. It is suitable for pipe outer diameters such as φ4 and φ6, which can meet the needs of different pipe diameters. The working pressure range is usually -100KPa to 1MPa, which can be used from low vacuum to high pressure. The temperature resistance range is generally -5℃ to 60℃, and some materials can withstand high temperatures up to 80℃. Reliable sealing: Equipped with special-shaped seals, it can ensure good sealing performance and prevent air leakage and other phenomena. At the same time, the universal threaded joint gasket also helps to improve the sealing performance. Strong clamping force: The chuck can firmly clamp the air pipe, and the spring clip can increase the clamping force, making the air pipe connection more stable and not easy to fall off. Lightweight design: While the body is miniaturized, stamping parts and resin parts are used to achieve lightweight, which is convenient for installation and use and reduces the overall weight of the equipment. High standardization: The type with quick-change connector has been standardized, with unified product specifications and good interchangeability, which is convenient for maintenance and replacement.
